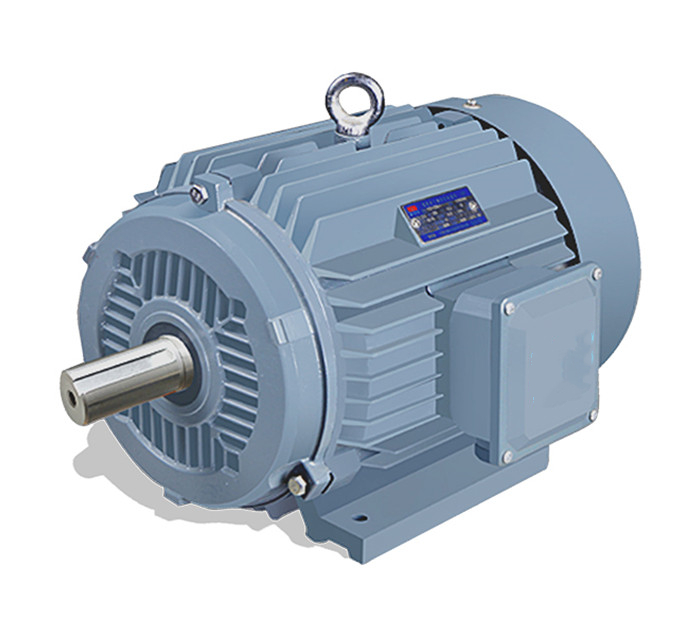

YP2 Series Wide Frequency Three Phase Induction motors
YP2 Series Documentation
- High efficiency IE2
- Energy saving
- Low noise
- Little vibration
- Frequency range from 30 to 60Hz (Range 30-50Hz for variable torque; range 50-60Hz for constant output)
General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process etc.
Common frame size corresponding to the power:
| Frame Size | 63 | 71 | 80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 | 250 | 280 | 315 | 355 |
| Power range kW | 0.12~0.25 | 0.18~0.55 | 0.18~1.1 | 0.37~2.2 | 0.75~3 | 1.5~4 | 2.2~7.5 | 4~18.5 | 11~22 | 15~37 | 18.5~45 | 30~55 | 37~90 | 45~220 | 110~375 |
| Poles | 2.4 | 2.4.6 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 |
2.4.6.8. 10 |
2.4.6.8. 10 |
Remark: For the other special rated powers, please contact with us.
|
Frame |
basic type |
derived type |
||||||||||||||||
|
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V17 |
V35 |
V37 |
B14 |
B34 |
V18 |
V19 |
|
|
63～112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132～160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
|
180～280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
315～355 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
