Recommended Products
- YBX5 Series Flameproof Three-phase Asynchronous Motors
-
Product Category: Explosion-proof motors
Power Range: 0.18 - 375 kW
Frame Size: 80 - 355
Number of Poles: 2, 4, 6, 8
Cooling Method: IC411
Protection Class: IP55
Insulation Class: Class F
Energy Efficiency Class: Grade 1 energy efficiency in GB18613 - 2020 (IE5 according to IEC standards)
- YBX4 Series Flameproof Three-phase Asynchronous Motors
-
Product Category: Explosion-proof motors
Power Range: 0.18 - 375 kW
Frame Sizes: 80 - 355
Number of Poles: 2, 4, 6, 8
Voltage and Frequency: 380V/50Hz
Cooling Method: IC411
Protection Class: IP55
Insulation Class: Class F
Energy Efficiency Class: Grade 2 energy efficiency according to GB18613 - 2020 (IE4 according to IEC standards)
Top articles

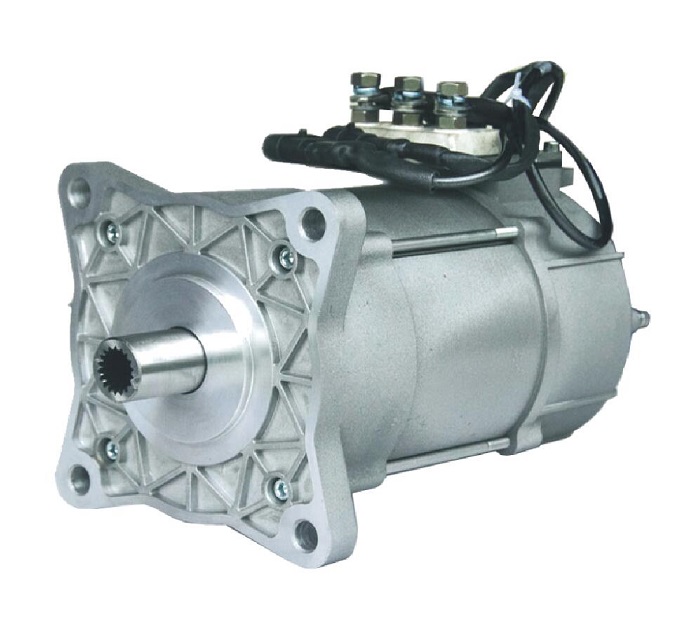

JXQ(D) Series AC motor for Storage Battery

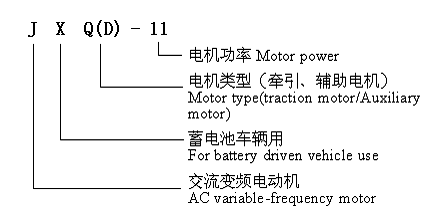

JXQ(D) Series Documentation
With complete speed feedback and temperature detection protection system.
Match with various electronic control system like DMC, DANAHER, KDS, GE and etc.
Low noise, high efficiency, strong overload capacity, compact structure.
Can work in the environment whose relative humid is 100% or the environment by which condensation will form on the motor surface.
No need to change brushes and commutator which are replaced regularly by general DC motor.
Ideal for the electric forklift, electric vehicle, electric bus or oil pump and such equipment which is driven by battery.
