Recommended Products
- YBX5 Series Flameproof Three-phase Asynchronous Motors
-
Product Category: Explosion-proof motors
Power Range: 0.18 - 375 kW
Frame Size: 80 - 355
Number of Poles: 2, 4, 6, 8
Cooling Method: IC411
Protection Class: IP55
Insulation Class: Class F
Energy Efficiency Class: Grade 1 energy efficiency in GB18613 - 2020 (IE5 according to IEC standards)
- YBX4 Series Flameproof Three-phase Asynchronous Motors
-
Product Category: Explosion-proof motors
Power Range: 0.18 - 375 kW
Frame Sizes: 80 - 355
Number of Poles: 2, 4, 6, 8
Voltage and Frequency: 380V/50Hz
Cooling Method: IC411
Protection Class: IP55
Insulation Class: Class F
Energy Efficiency Class: Grade 2 energy efficiency according to GB18613 - 2020 (IE4 according to IEC standards)
Top articles

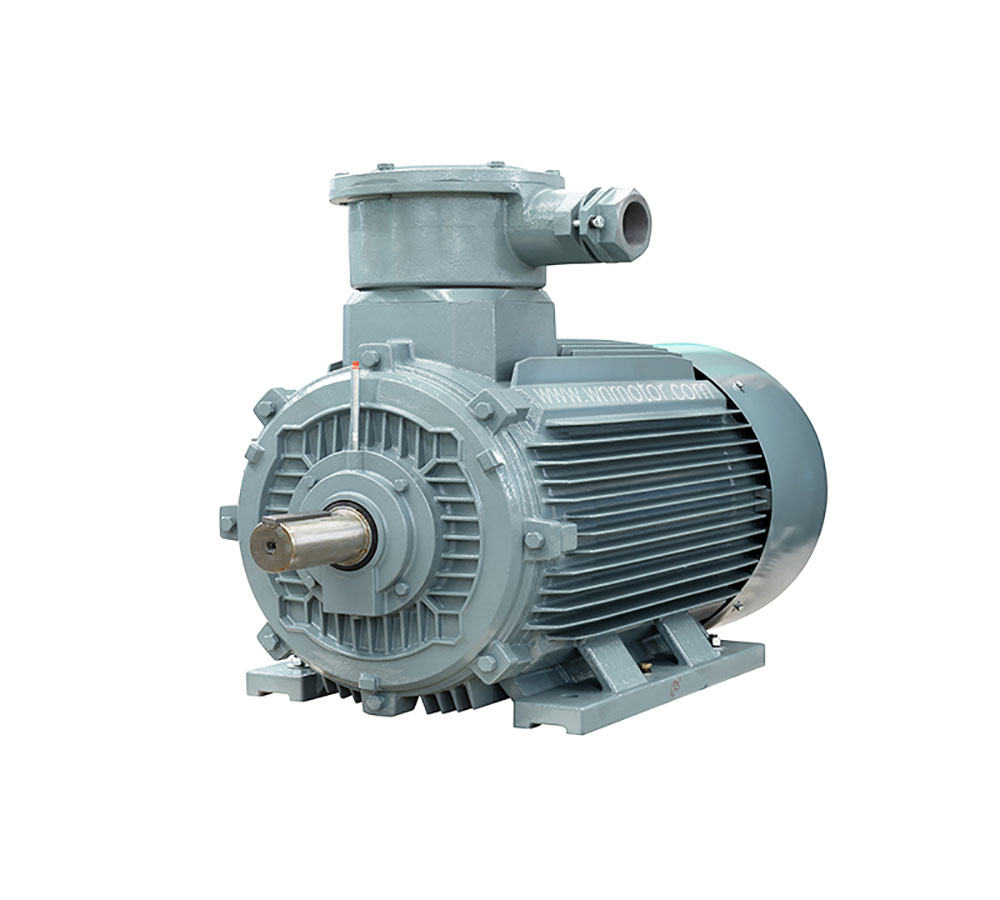

YBX4 Series Flameproof Three-phase Asynchronous Motors
Applications: Ideal for the environment where there is
Category II Class A and B flammable gas or the flammable
mixture of air and steam in Temperature Group T1~T4.
Features: Exd-symbol ExdⅡAT4 、 ExdⅡBT4, Category
Ⅱ:surface highest temperature no higher than T1
（450℃）、 T2（300℃）、T3（200℃）、T4（135℃）; terminal box with three or six terminals for rubber jacket
cable(plastic cable) and steel cable.
Ambient temperature: －15℃~40℃.
Rating voltage:380V、660V、1140V、380/660V、660V/1140V
