* Frame sizes: 400-800
* Rated output: 160-1800kW
* Voltage: 380V, 3kV, 6kV
* Frequency: 50Hz
* Insulation class: F
* Number of poles: 6, 8,10
* Degree of protection: IP54
* Duty cycle: S1
* Rotor: Squirrel cage
* Bearing: Rolling

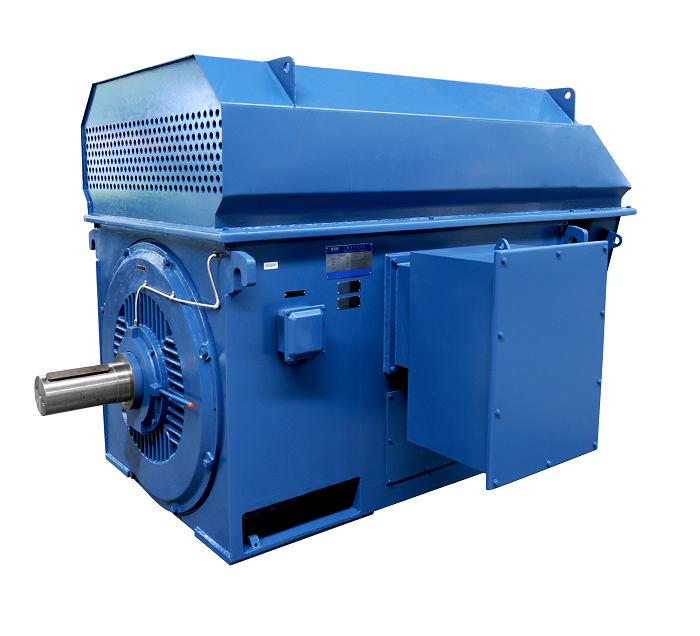

YTM / YHP / YMPS Series Documentation

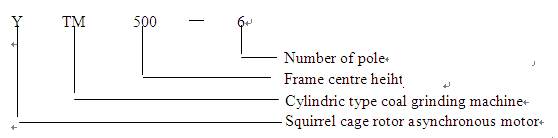

YTM series electric motor is matched specially with the tubular shape coal grinder;
YHP series is matched with bowl shape coal grinder.
YMPS series is matched specially with MPS bowl shape coal grinder.
High efficiency, energy saving,
Low vibration, small size, light weight,
Reliable performance and easy installation and maintenance.
The stator winding is F grade insulation at the winding’s end part being firm banded.
The whole stator has been treated with VPI technology to make stator with a robust body and good electric and moisture proof.
The frame adopts the welded box structure of all steel plates and the structure design of the hoisting type frame has good rigidity.
Ideal for coal mill.
Common frame size corresponding to the power:
YTM Series 6kV 50Hz
| Frame | 400 | 450 | 500 | 560 | 630 | 710 | 800 |
| Power range kW | 160~200 | 280~315 | 400~710 | 560~1000 | 1000~1120 | 1250~1400 | 1600~1800 |
| Poles | 8 | 8 | 6.8 | 6.8 | 6 | 10 | 10 |
YTM Series 380/660V 50Hz
| Frame | 400 | 450 |
| Power range kW | 160~200 | 280~315 |
| Poles | 8 | 8 |
YMPS Series 6kV 50Hz
| Frame | 400 | 450 | 500 | 560 | 630 |
| Power range kW | 200 | 250~355 | 400~560 | 630~900 | 1000 |
| Poles | 6 | 6 | 6 | 6 | 6 |
YHP Series 6kV 50Hz
| Frame | 450 | 500 | 560 |
| Power range kW | 280~355 | 400~450 | 400~450 |
| Poles | 6 | 6 | 10 |
Remark: For the other special rated powers, please contact with us.
