Super-High Efficiency IE3 Three Phase Marine electric Motors

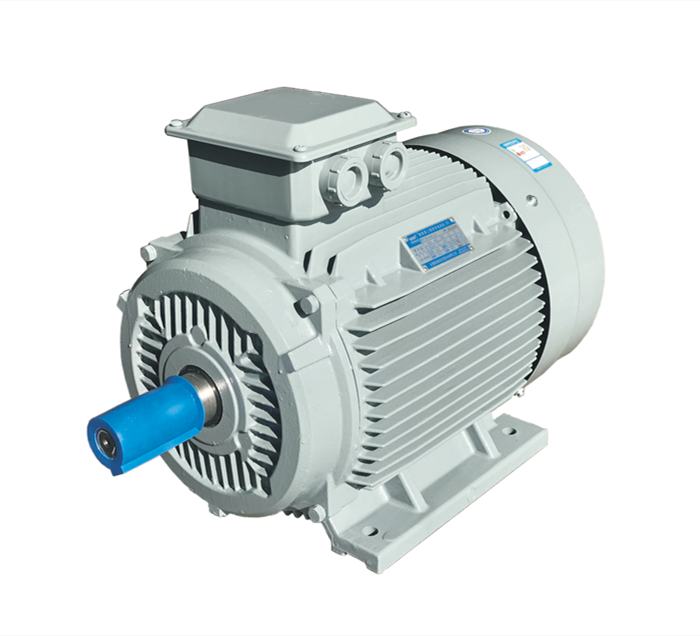

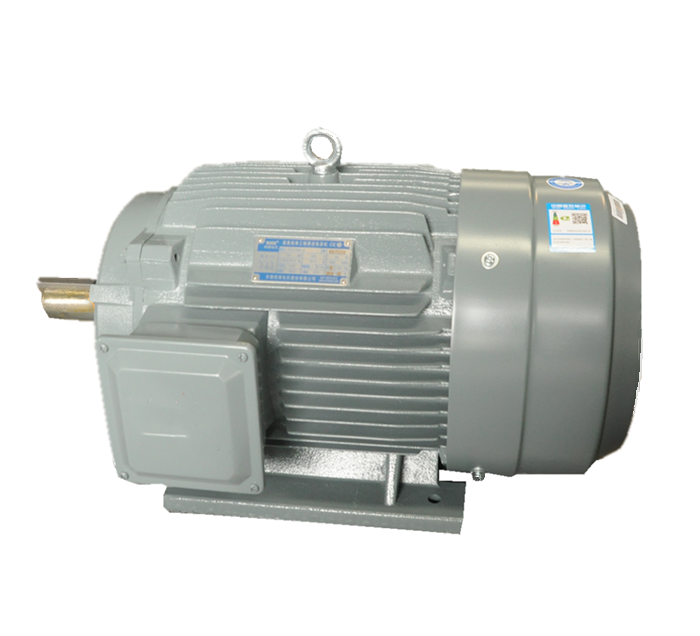

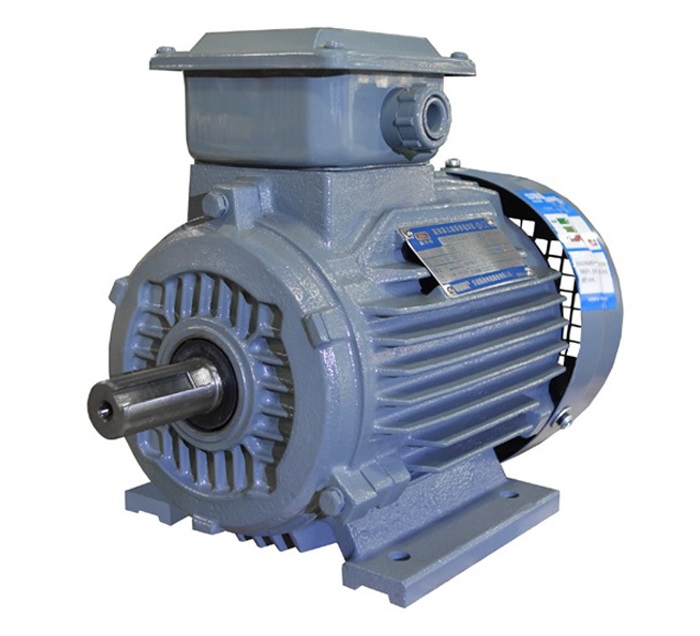

YE3-H Series Super- High Efficiency Three Phase Marine Induction Motors

YE3-H Documentation

Frame sizes: 80 to 355 Rated output: 0.37 to 375kW

Voltage: 220~690V Frequency: 50Hz or 60Hz

Poles: 2, 4, 6, 8,10 Efficiency levels: IE3

Duty Cycle: S1 Enclosure: IC411 - TEFC

Insulation class: F/H Degree of protection: IP55 / IP56

Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), class F or H insulation, IP55 protection grade, low noise, little vibration, reliable running, CCS approved.

Can be applied in the marine machines where continuous duty is required.

Frame

basic type

derived type

B35

V15

V36

B14

B34

V18

80～112

√

132～160

√

180～280

√

315～355

√
