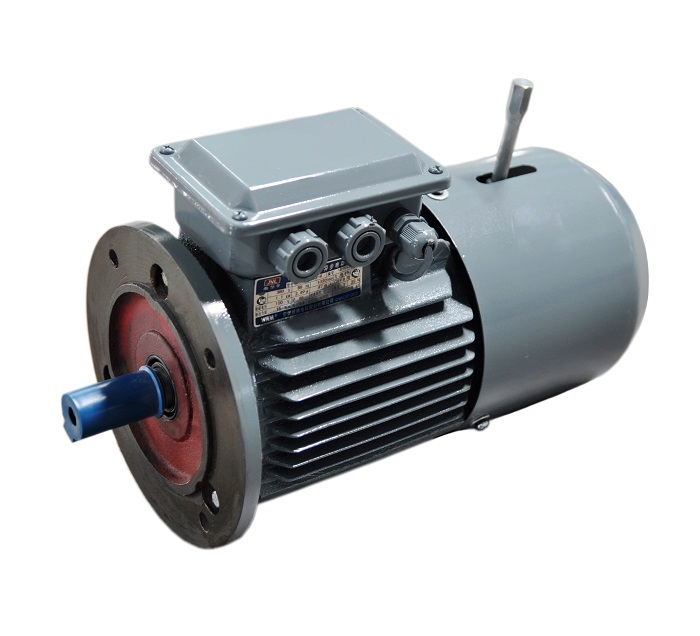

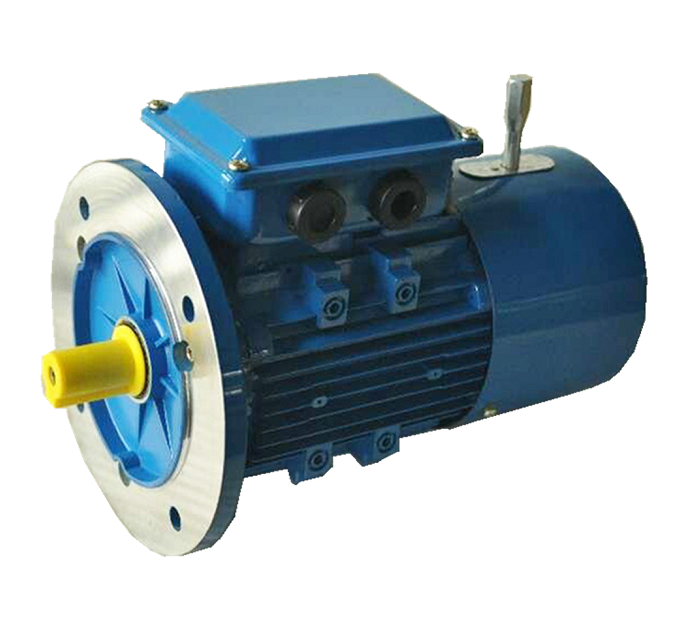

YE3EJ Series Super High efficiency AC Squirrel cage brake motors

YE3EJ Series Documentation

Electromagnetic brake
Fast braking
High efficiency and Energy saving IE3
Simple structure
Exact orientation

Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.

Common frame size corresponding to the power:

Frame Size	80	90	100	112	132	160	180	200	225	250	280	315
Power range kW	0.18~1.1	0.37~2.2	0.75~3	1.5~4	2.2~7.5	4~18.5	11~22	15~37	18.5~45	30~55	37~90	45~220
Poles	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8	2.4.6.8.10

Remark: For the other special rated powers, please contact with us.

Frame

basic type

derived type

B35

V15

V36

B14

B34

V18

80～112

√

132～160

√

180～280

√

315

√
