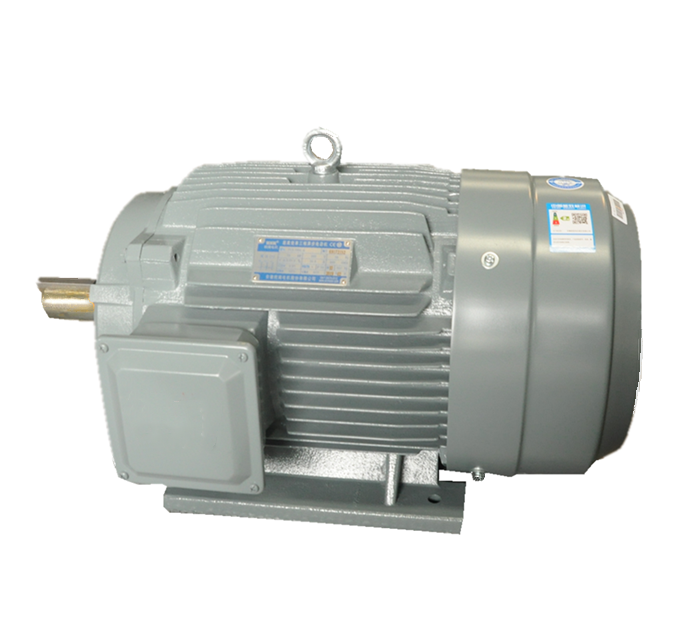

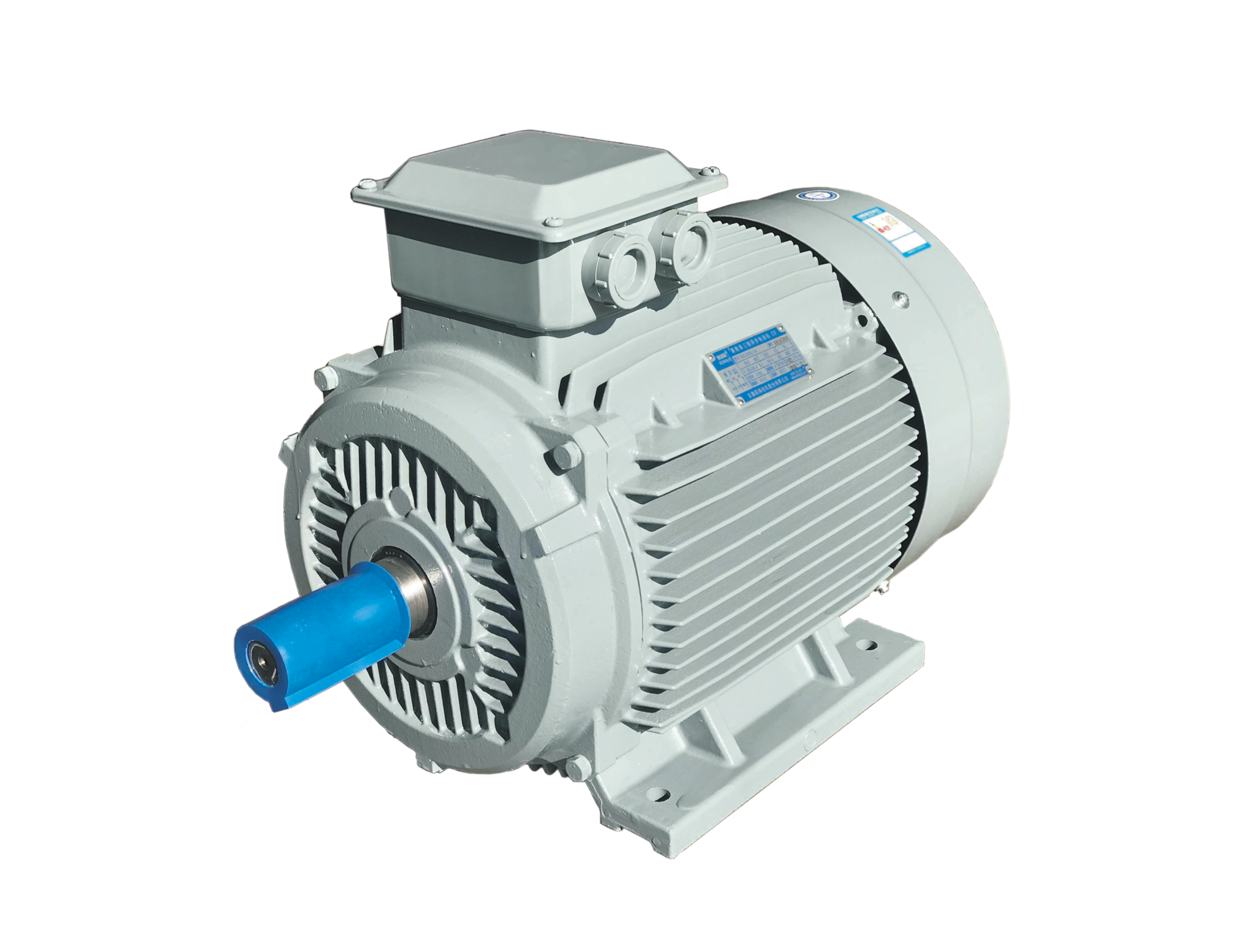

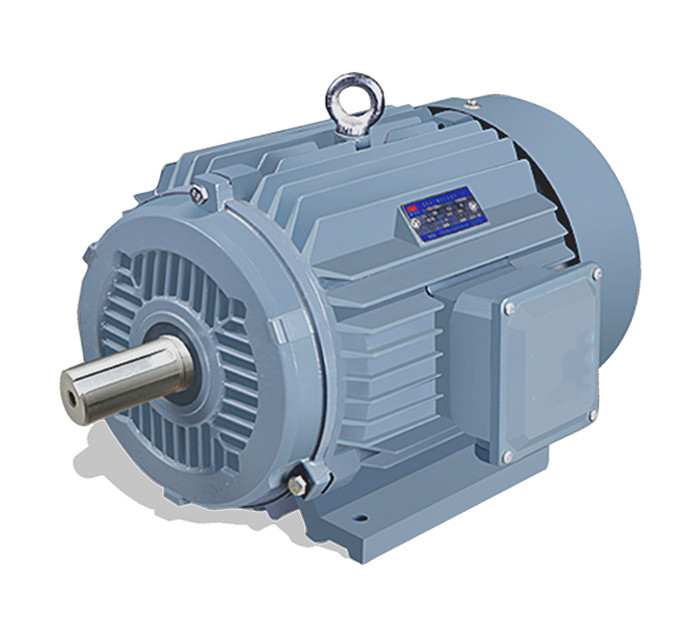

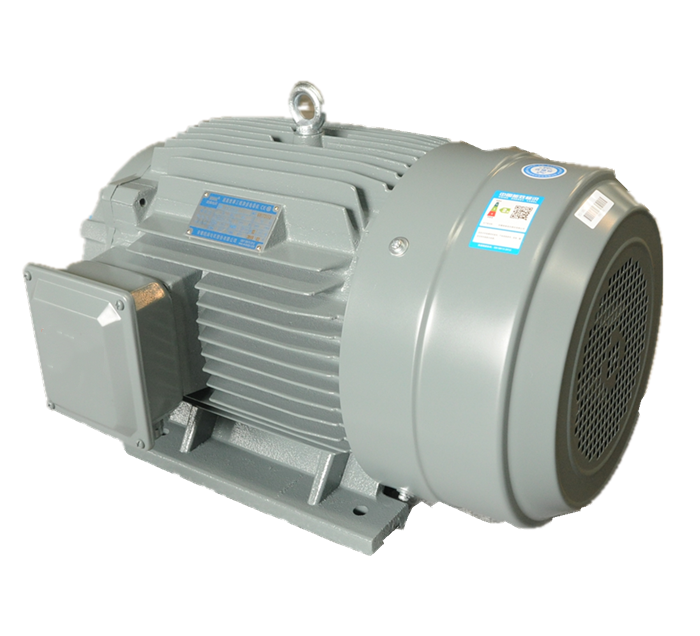

YP2 Series Wide Frequency Three Phase Induction motors

YP2 Series Documentation

High efficiency IE2
Energy saving
Low noise
Little vibration
Frequency range from 30 to 60Hz (Range 30-50Hz for variable torque; range 50-60Hz for constant output)

General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process etc.

Common frame size corresponding to the power:

Frame Size

100

112

132

160

180

200

225

250

280

315

355

Power range kW

0.12~0.25

0.18~0.55

0.18~1.1

0.37~2.2

0.75~3

1.5~4

2.2~7.5

4~18.5

11~22

15~37

18.5~45

30~55

37~90

45~220

110~375

Poles

2.4

2.4.6

2.4.6.8

2.4.6.8.

Remark: For the other special rated powers, please contact with us.

Frame

basic type

derived type

B35

V15

V17

V35

V37

B14

B34

V18

V19

63～112

√

132～160

√

180～280

√

315～355

√
