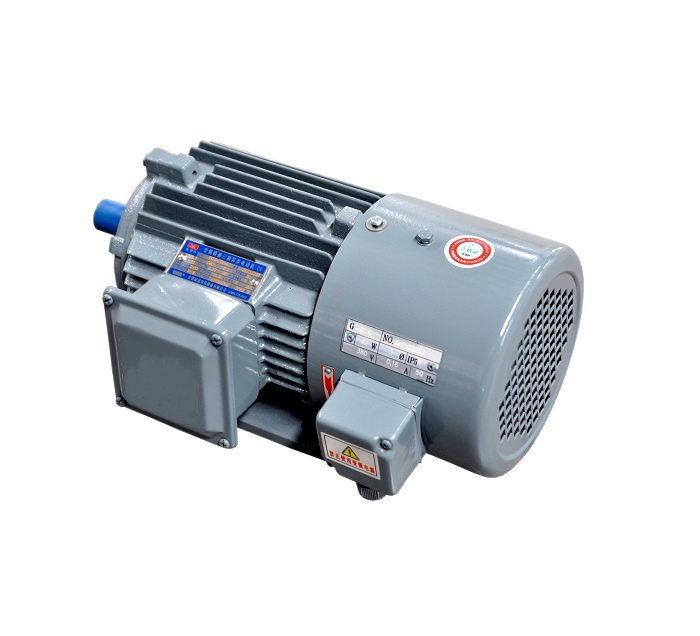

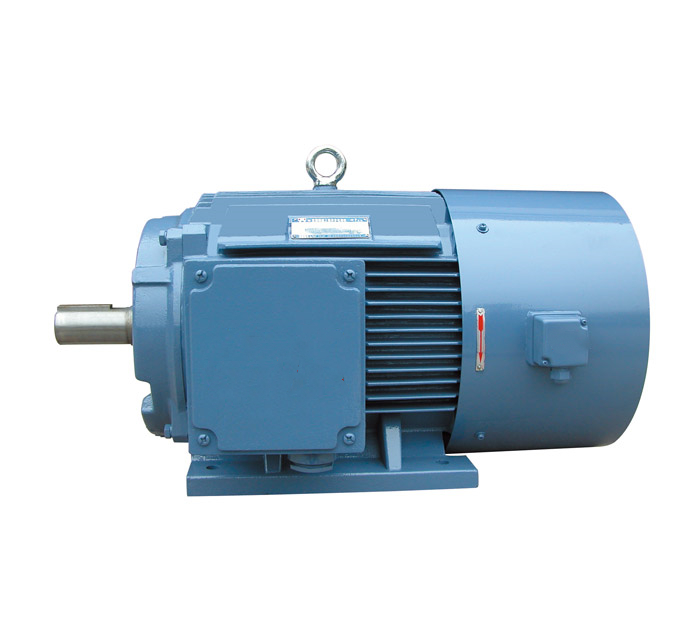

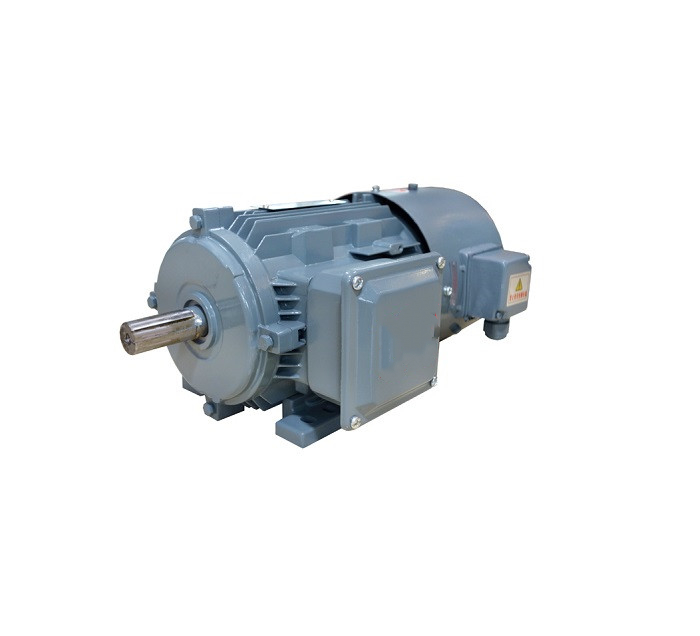

YVF2 Series Frequency Variable Speed Regulation Motors

YVF2 Series Documentation

Stepless adjustable speed operation in a wide range
Good performance of the system, energy saving
High-grade insulation material and special technological
withstand high frequency pulse impact
Separate fan for forced-ventilation

Various operation systems by which speed-regulation is needed, such as metallurgy, chemistry, textile, pumps, machine tool, etc.

Common frame size corresponding to the power:

Frame Size

100

112

132

160

180

200

225

250

280

315

355

Power range kW

0.18~1.1

0.37~2.2

0.75~3

1.5~4

2.2~7.5

4~18.5

11~22

15~37

18.5~45

30~55

37~90

45~220

110~375

Poles

2.4.6.8

2.4.6.

8.10

2.4.6.

8.10

Remark: For the other special rated powers, please contact with us.

Frame

basic type

derived type

B35

V15

V36

B14

B34

V18

80～112

√

132～160

√

180～280

√

315～355

√
