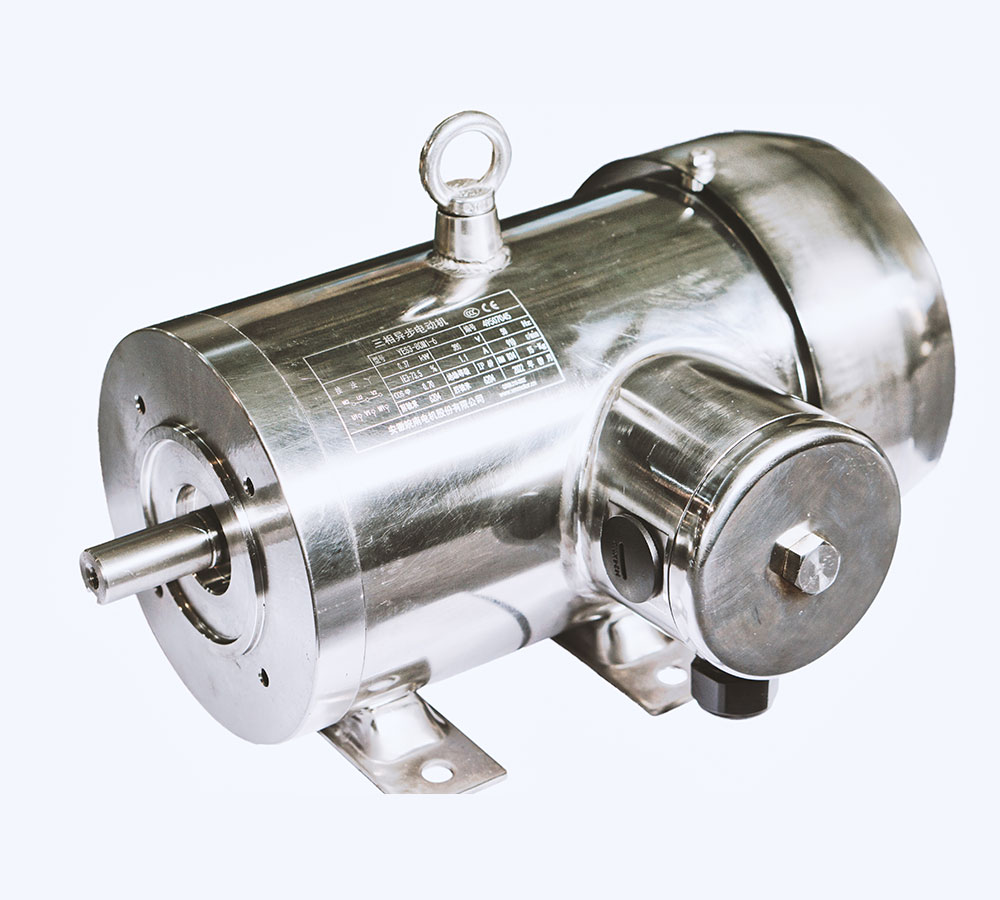

YES3(IP69K) Series Stainless Steel Three Phase Induction Motors


* All 304 Stainless Steel Frame, End bell At Both Ends,fan cover and shaft

* Space heater or Thermistor (PTC/PT100) available

* Antibacterial Treatment on All Internal Parts

* Round conduit box and housing, easy wash down

* 1.15 Service Factor

* Scratch resistant nameplate data laser printed(not etched) into frame to prevent corrosion and bacterial build up on nameplate

* All Double Lip Seals, Separate Housings For Dual Lip Seals

* Same Oversized 6200 Double Sealed Bearings At Both Ends

* SAE Threads & Bolts

* Sealing"O"Rings On Bolt & End Shields

* Double VPI Treatment & Epoxy Varnished

* End Shield & Body has Rebated Fitting

* TENV Temperature Rise Class"B"@1.0 or "F"@1.15

* Anti-bacterial Treatment on All Internal Parts, Anti-fungal,Anti-moisture Winding Treatment

* 4 Drain Plugs In Cast Stainless Steel End bells with T-drains Packed in Conduit Box

* Conduit Box & Cover Rubber Gasket

* Heavy Gauge Stamp Stainless Steel Feet 50-100 %

* Thicker Than Other Brand Names, Tig Welded

* Big Frames are cast feet

* Inverter Duty Wire

* Extra high breakdown torque.

* Patented vacuum epoxy encapsulation system ensures liquids won't penetrate the motor
