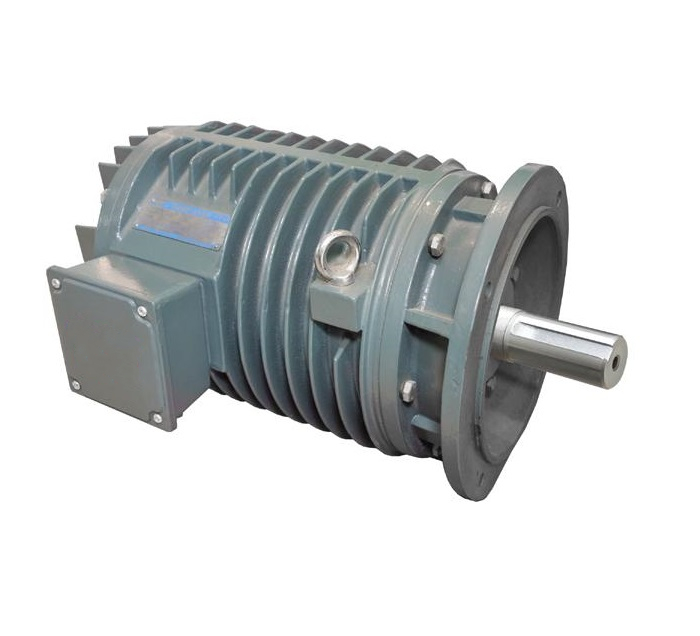

YG Series Documentation

Small size and lightweight

Easy to maintain

Reliable operation

Suitable for driving the devices that feature on frequent start, frequent brake, corotation and reverse, plug brake, impact load, or in such harsh environment with high temperature or much dust for continuous on duty or short time on duty



Idea for driving the work roller table and conveyance equipment in steel mill. YGa is suitable for driving the mill table and YGb is suitable for driving the live-roll table in metallurgy industry.

Common frame size corresponding to the power:

Frame Size	112	132	160	180	200	225
Power range kW	0.3~1.8	0.56~2.4	0.48~5.3	2.2~6.7	2~9.5	3.6~15
Poles	4.6.8.10.12	6.8.10.12	8.10.12.16	8.10.12.16	10.12.16.20	10.12.16.20

  Remark: For the other special rated powers, please contact with us.

B3 Horizontal Foot Mounted Only

B5 Footless and B5 Flange Mounted

B35 Foot and B5 Flange Mounted
