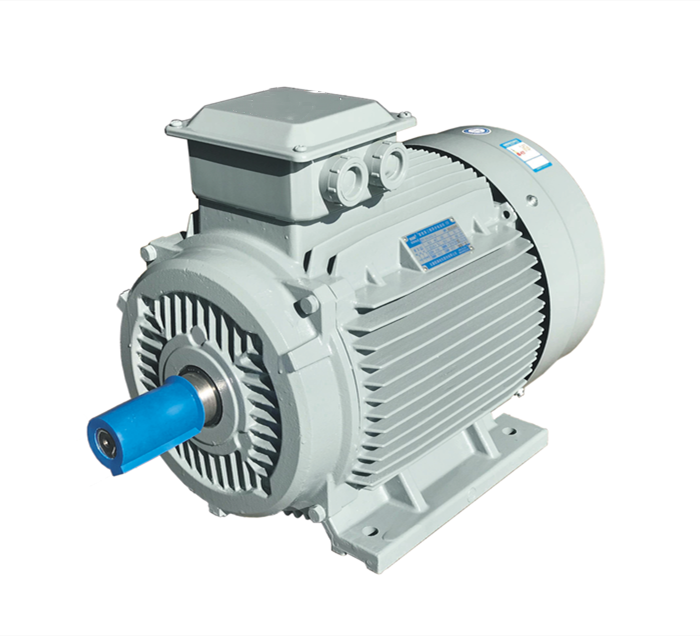

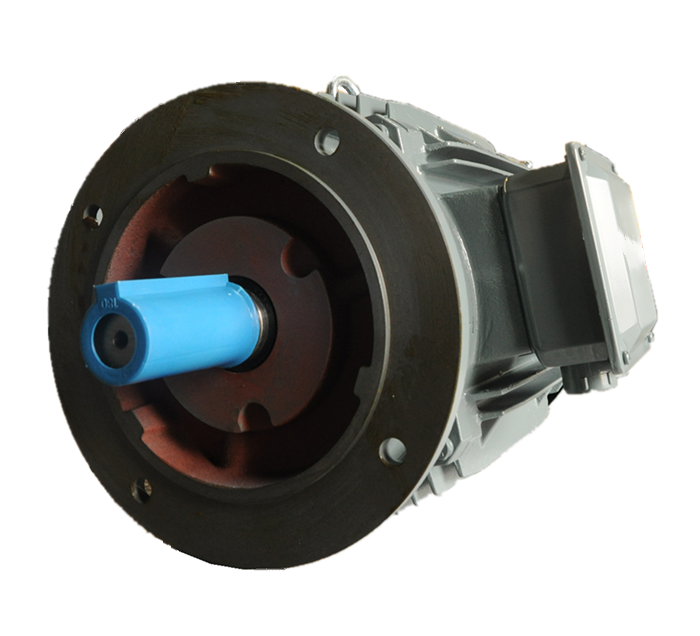

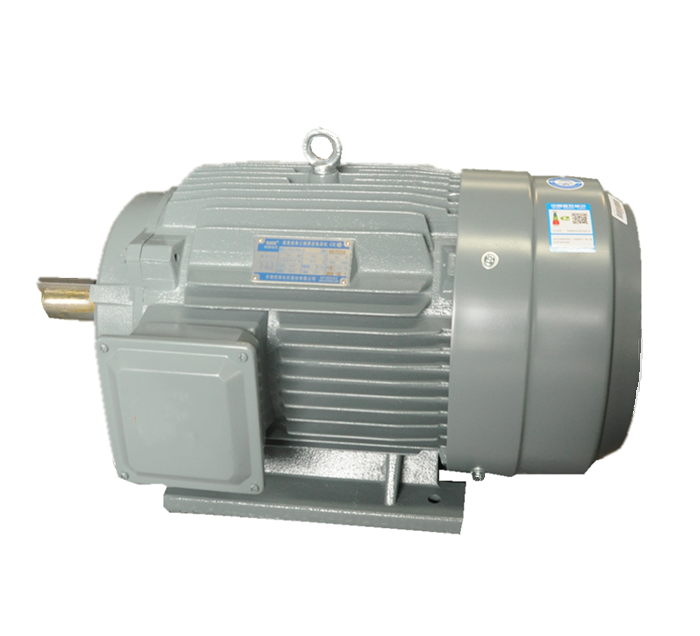

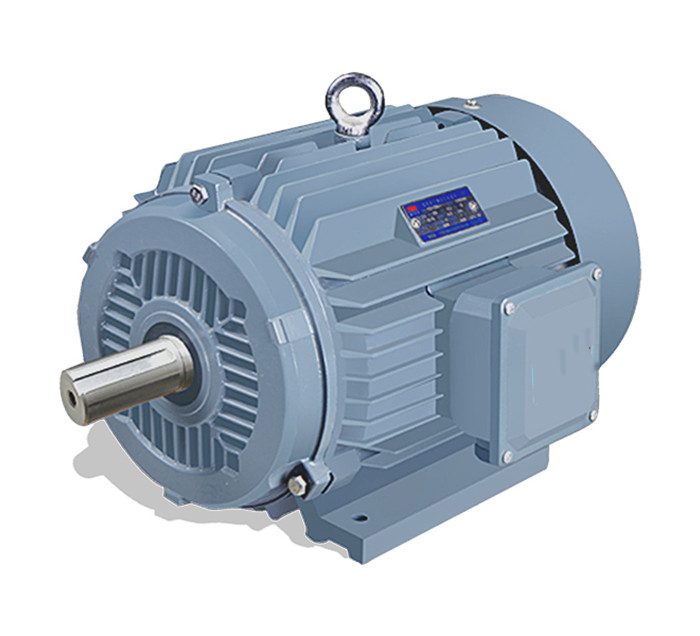

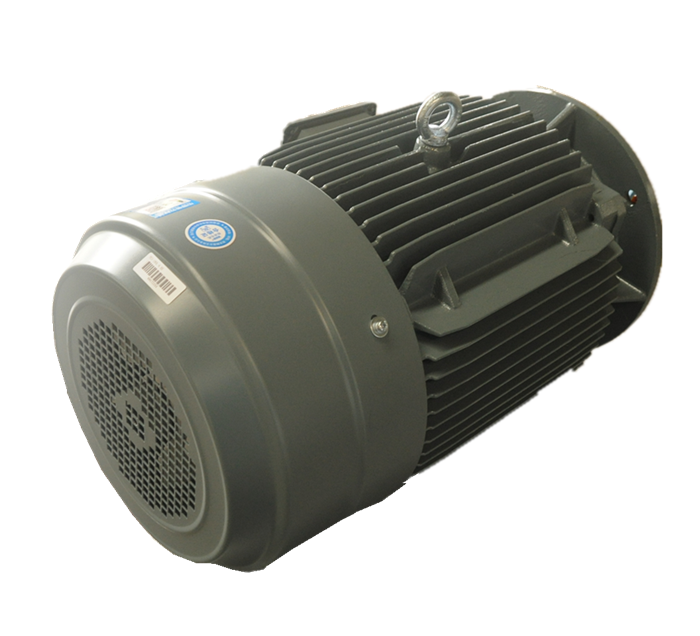

YE3 Series IE3 Super high Efficiency Three phase induction motors

YE3 Documentation

Beautiful profile
High efficiency and energy saving (IE3 of IEC60034-30 and level 2 of GB18613-2012)
Class F VPI insulation
Low noise
Slight vibration
Reliable performance
Flexibility of application
Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
High lock rotor torque
Junction box equipped with glands
F2 mounting position, F1, F3 is available too
Bidirectional fan
Oversized ball bearings on both ends for direct coupling

Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.

Common frame size corresponding to the power:

Frame Size

100

112

132

160

180

200

225

250

280

315

355

Power range kW

0.12~0.25

0.18~0.55

0.18~1.1

0.37~2.2

0.75~3

1.5~4

2.2~7.5

4~18.5

11~22

15~37

18.5~45

30~55

37~110

45~220

110~375

Poles

2.4

2.4.6

2.4.6.8

2.4.6.8.

Remark: For the other special rated powers, please contact with us.

Frame

Basic Type

Derived type

B35

V15

V36

B14

B34

V18

63~112

√

132~160

√

180~280

√

315~355

√
