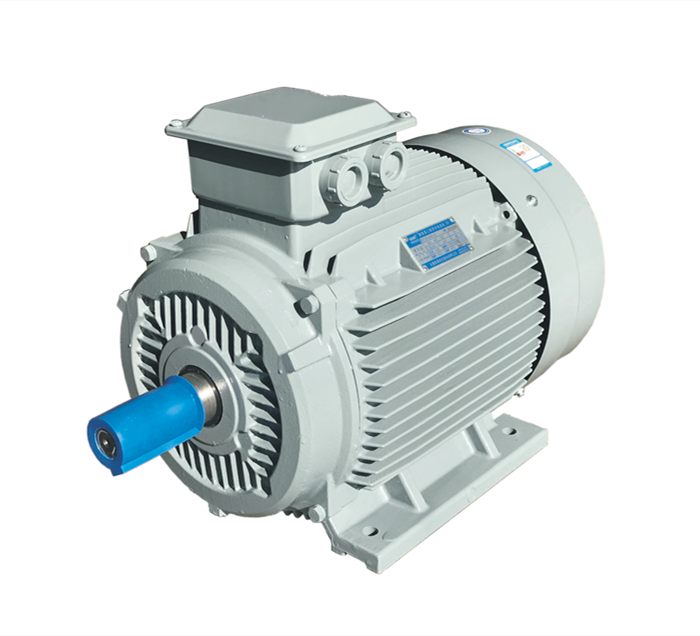

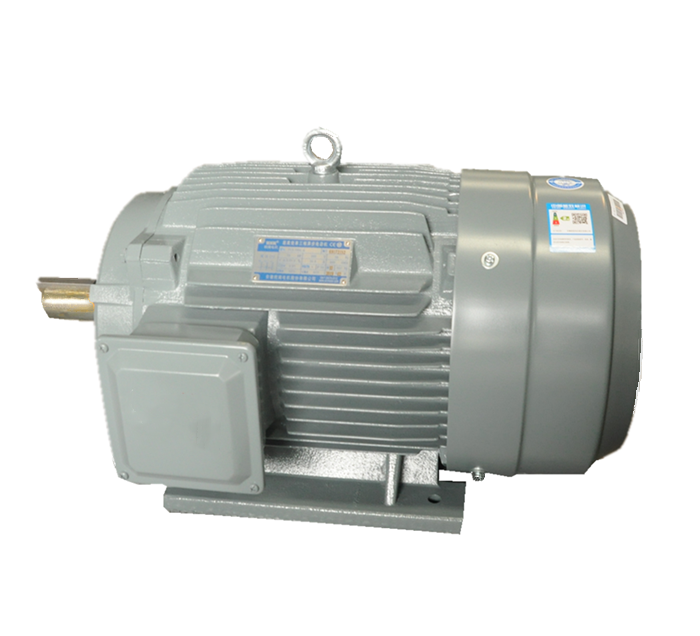

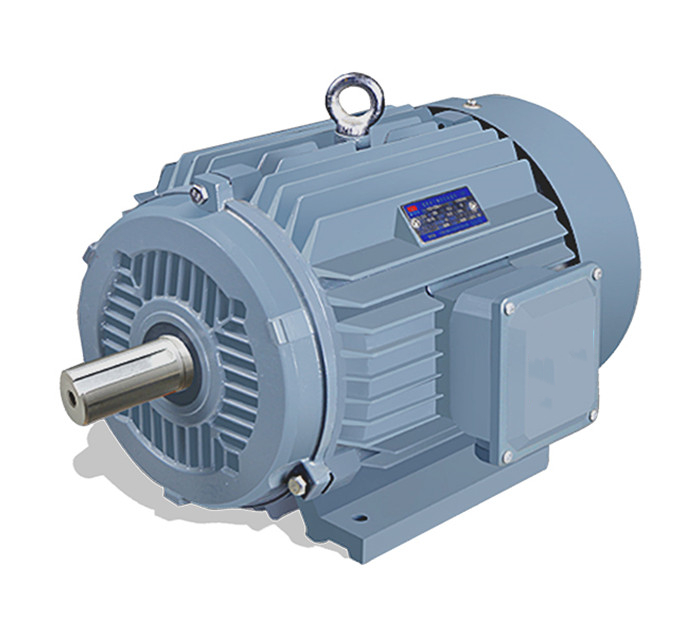

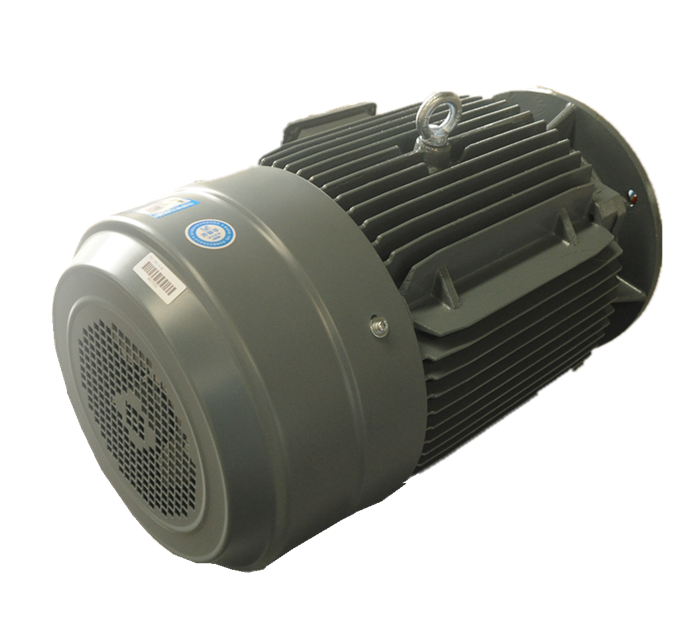

YX3 Series IE2 high efficiency Three phase induction motors



YX3 Series Documentation




  • Beautiful profile
  • High efficiency and energy saving (IE2 of IEC60034-30 and level 3 of GB18613-2012)
  • Class F VPI insulation
  • Low noise
  • Little vibration
  • Reliable performance
  • Flexibility of application
  •  Inverter Duty Rated:  2:1CT & 10:1VT at 380V 50 Hz
  • High lock rotor torque
  • Junction box equipped with glands
  • F2 mounting position, F1, F3 is available too
  • Bidirectional fan
  • Oversized ball bearings on both ends for direct coupling
  • Larger WANNAN Metric Motors, up to 2000kW, are also available upon request.




Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.



Common frame size corresponding to the power:

Frame Size 80 90 100 112 132 160 180 200 225 250 280 315 355
Power range kW 0.18~1.1 0.37~2.2 0.75~3 1.5~4 2.2~7.5 4~18.5 11~22 15~37 18.5~45 30~55 37~90 45~220 55~375
Poles 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8

2.4.6.8.

10

2.4.6.8.

10.12

 Remark: For the other special rated powers, please contact with us.




Frame

Basic Type

Derived type

B3

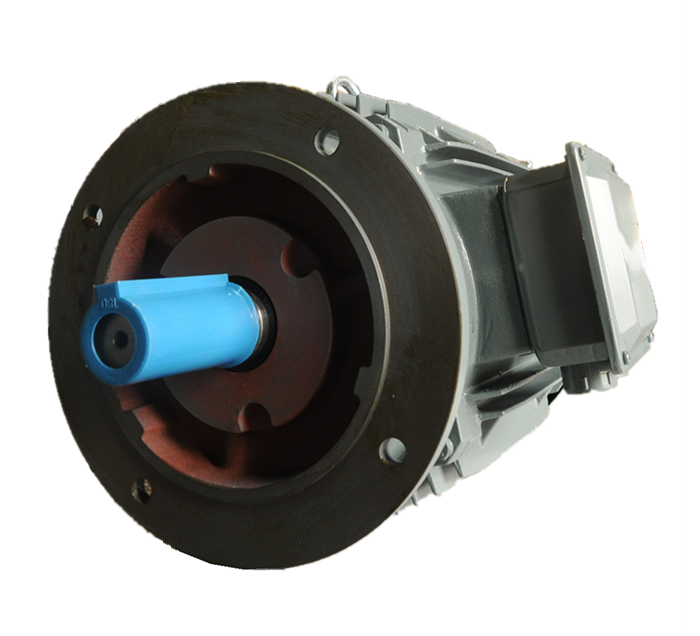

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

B14

B34

V18

63~112

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

132~160

√

√

√

√

√

√

√

√

√

√

√

√

-

-

-

180~280

√

√

√

√

-

-

-

-

-

-

-

-

-

-

-

315~355

√

-

√

√

-

-

-

-

-

-

-

-

-

-
